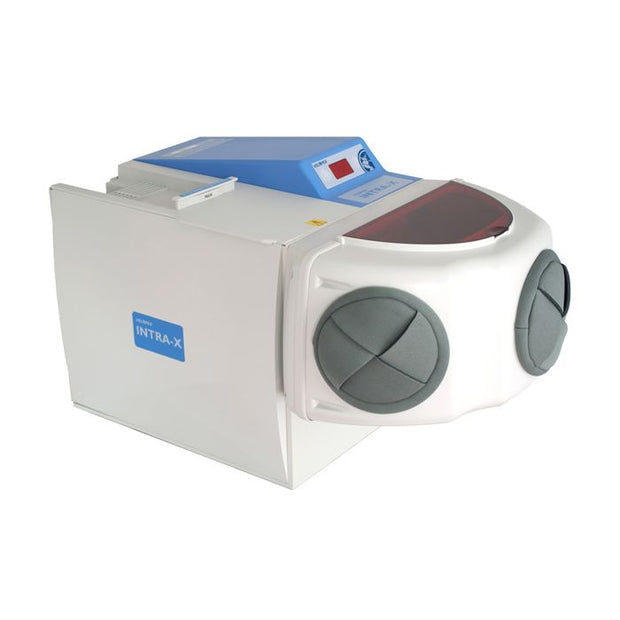

Velopex Intra-X Automatic Dental X-Ray Film Processor
Perfect help mate in the busy practice.
The Intra-X delivers dry-to-dry radiographs for the patient’s file within just four and a half minutes, or makes fully-processed wet endodontic films available in only two and a half minutes for urgent viewing.
Rapid Results:
- Films are processed dry-to-dry in only four and a half minutes.
- For urgent diagnoses, fully developed and fixed endodontic films may be viewed wet after only two and a half minutes.
- The prompt availability of radiographs saves time and reduces patient re-call.
Compact and Instantly Installed:
- Installation consists of choosing a location near a standard electrical socket and filling with developer, fixer and water.
- Switch on, and the machine is ready for work.
Specifications
- Height: 315mm / 12.5″
- Width: 290mm / 11.5″
- Depth (incl. Daylight Loader) 635mm / 25″
- Weight (Empty Tanks): 9.5kg / 21lbs
- Weight (Full Tanks): 13.7kg / 30lbs
- Tanks Capacity (Each): 1.4 L / 2.5 Imp Pints
- Chemical Operating Temp. (Developer): 25˚C / 77˚F
- Chemical Operating Temp. (Fixer): 27.5˚C / 81.5˚F
- Water Temp.: Should not exceed 28˚C / 82.4˚F
- Chemical Warm-Up Time: approx. 10mins
- Film Feed Speed: 470mm / 18.5″ per min
- Max. Film Width: 65mm / 2.5″
- Processing Time (Dry): approx. 4.5mins
- Processing Time (Wet-Endodontic): approx. 2.5mins
- Power Supply: 110-120V, 220-240V ; 50/60Hz
- Power Consumption: 1,000W
- Environmental Conditions: Indoor Use Only
- Environment Temp.: 5 – 26˚C / 41 – 78.8˚F
- Max. Relative Humidity: 80%
- Complies With: IEC61010-1:2001 (2nd Edition) EN61010-1:2001 (2nd Edition) UL61010-1 July 12, 2004 Deviations CAN/CSA-C22.2 No.61010-1 EN60601-1-2:2001
Contents
- 1 x Velopex Intra X Automatic Dental X-Ray Film Processor
