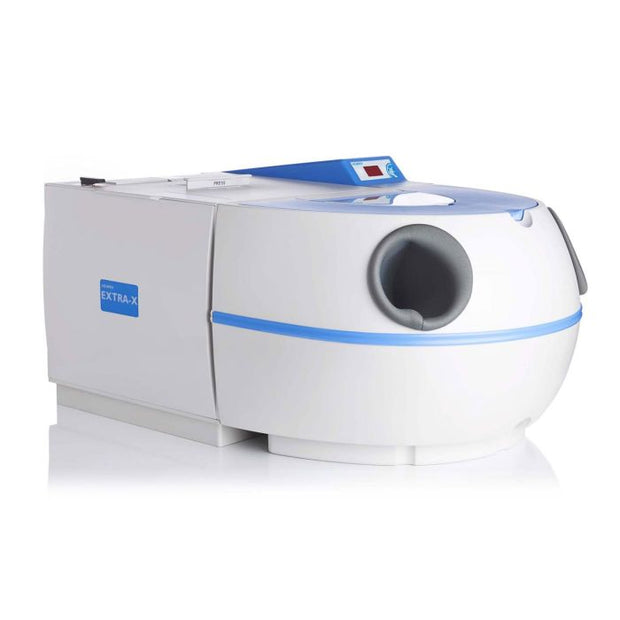

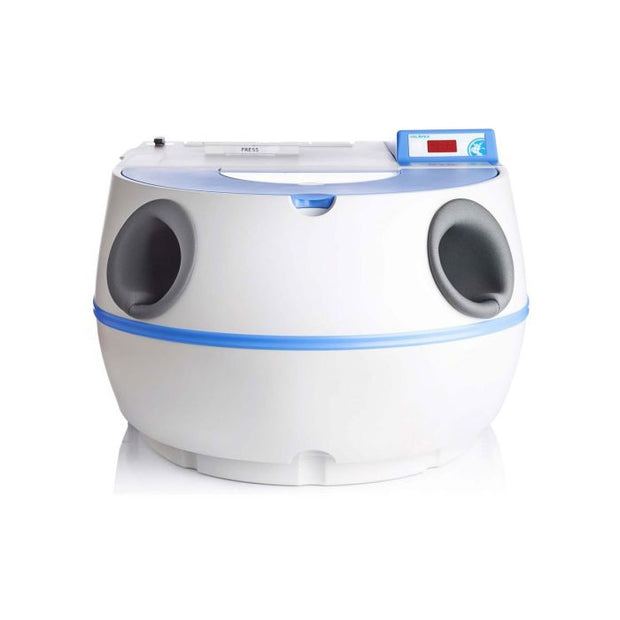

Velopex Extra-X Automatic Dental X-Ray Film Processor
The Velopex Extra-X processes high quality images of all dental x-ray film: Size 0-4, panoramic and cephalometric film. The Extra-X is fully automatic, requiring no personal supervision during processing and delivers dry, developed x-ray images in 4 minutes.
Use your Extra-X in daylight with its optional Daylight Loader, avoiding the use of a darkroom, freeing up space in your surgery.
Velopex x-ray film processors have excellent economy and efficiency, maximising chemical longevity and reducing your operating costs.
- High Quality Dental X-Ray Imaging: Dental radiographs perfect for immediate diagnosis and archiving. Dental x-ray film is developed and delivered dry in 4 minutes, producing extremely high x-ray imaging quality. Develop and diagnose while patient is still in the chair.
- Process All Dental X-Ray Film Sizes - X-Ray Imaging – Size 0-4, Panoramic And Cephalometric Sizes: Process x-ray films anywhere between 25 – 260mm in width and process multiple films without stopping the machine, saving you valuable time.
- Excellent Chemical Economy And Efficiency: Automatic temperature control and minimal chemical exposure. Optimum temperature is maintained during both operation and stand-by modes and the surface area of chemical exposed to air is limited to keep oxidisation to a minimum: both improve efficiency and conserve chemical longevity.
- Automated And Responsive Operation: Fully automatic x-ray film processor requires no staff supervision. Process is initiated by the insertion of film and an audible alert indicates process completion. This allows you to perform other tasks while your x-ray film(s) are developing.
- Unique X-Ray Film Processor System: X-ray film is gently carried between permeable belts with care and precision. Film is sandwiched between and carried by the transport belts to prevent sliding and ensure image quality, while eliminating the risk of film loss.
Specifications
- Height: 340mm / 13.5″
- Width: 510mm / 20″
- Depth (excl. Daylight Loader): 470mm / 18.5″
- Depth (incl. Daylight Loader): 740mm / 29″
- Weight (Empty Tanks): 21kg / 46.5lbs
- Weight: (Full Tanks): 27kg / 59.5lbs
- Tank Capacity (Each): 3.8 L / 6.75 Imp Pints
- Chemical Operating Temp. (Developer): 25.5 – 77˚C
- Chemical Operating Temp. (Fixer): 27.5 – 81.5˚C
- Water Temp.: Should not exceed 28˚C / 82.4˚F
- Chemical Warm-Up Time: approx. 10mins
- Film Feed Speed: 470mm / 18.5″ per min
- Max. Film Width: 260mm / 10.25″
- Processing Time (Dry)*: approx. 5mins
- Processing Time (Wet-Endodontic): approx. 2mins
- Power Supply: 100-120V, 200-240V ; 50/60Hz
- Power Consumption: 1,150W
- Environmental Conditions: Indoor use only
- Environmental Temp.: <27˚C
- Maximum Relative Humidity: 80%
- Complies With: IEC 61010-1:2001 (2nd Edition) EN 61010-1:2001 (2nd Edition) UL 61010-1 July 12, 2004 Deviations CAN/CSA-C22.2 No.61010-1
Contents
- 1 x Velopex Extra-X Automatic Dental X-Ray Film Processor
