SZ-75 20:1 Zygoma Angulated Surgical Handpiece

Unique, easy and safe

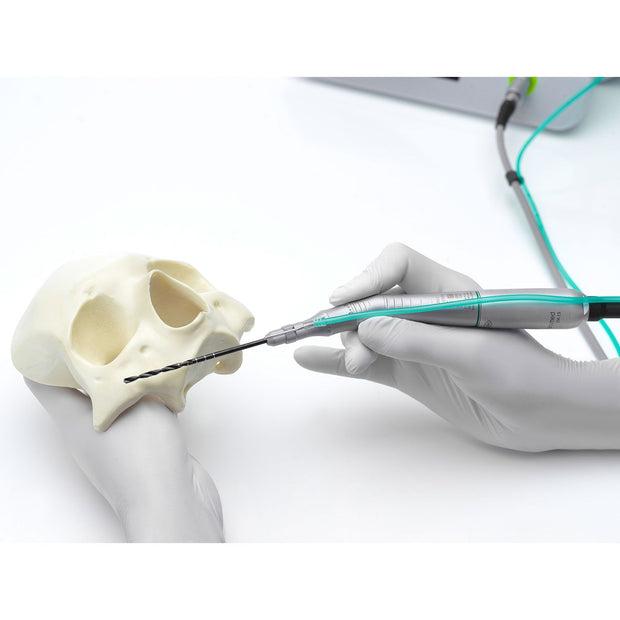

The SZ-75 20:1 Zygoma Angulated Surgical Handpiece facilitates the work of the surgeon for the insertion of Zygoma implants. The angulation is unique and allows a much better view of the treatment site. So the surgical procedure is also possible to difficult accessible positions in the zygomatic bone.

Advantages

• Easy access to treatment site - The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.
• High application security - The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.
• Fatigue-free working - The ergonomic design of the handpiece ensures long and fatigue-free working.
• Efficient Cooling - The spray exits near the instrument's area of activity and cools the operating area extremely efficiently.

Technical Data

• Transmission ratio: 20:1
• Coupling system: ISO 3964 (DIN 13940)
• External cooling system: single
• Chucking system: twist chuck system
• Rotary instruments: Zygoma burs, surgical burs and cutters with contra-angle shank Ø 2,35 mm
• Maximum drive speed: 50,000 min
• Can be dismantled: yes
• Indications, e.g.: Implantation of Zygoma implants, osteotomy

CONTENTS

• 1 x SZ-75 20:1 Zygoma Angulated Surgical Handpiece
